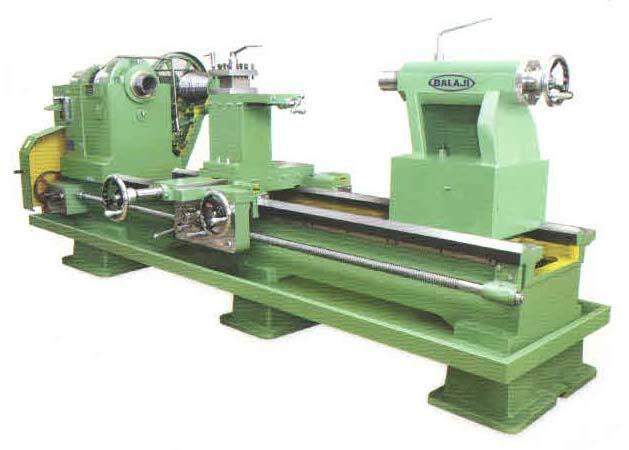

Pulley Driven Lathe Machine (VH 406-508-558-660-760)
Pulley Driven Lathe Machine (VH 406-508-558-660-760)
Specifications
Weight | 100-1000kg |
Voltage | 220V |
Automatic Grade | Automatic |
Warranty | 1year |
Driven Type | Electric |
Power(W) | 1-3kw |
Our offered range of Pulley Driven Lathe Machine (VH 406-508-558-660-760) is designed and developed at state-of-the-art production units of our vendors. It brings accuracy in various construction processes like turning surfacing and screw cutting operations. Furthermore, this machine is tested on various parameters for any flaw and then shipped.
Standard Accessories :
Chuck back plate 1 no, centre adapter, Dead Centres 2 nos, Tool Post Spanner, Motor pulley, Thread dial indicator, Change gear set – 1 (For metric and inch both) and chip Tray.
Optional Accessories :
Face plate, Carrier plate, steady rest, follow rest, Taper turning attachment, motorised coolant pump with tank and fittings, Rear tool post with extended cross slide, Chuck back plates (Extra), and Electricals (Motor, Wrings, Switch, V-belts and fittings), Norton Gear Box and Rapid Saddle mvoment.
Technical specifications
Model |
VH 406 |
VH 508 |
VH 558 |
VH 660 |
VH760 |
Type of Bed |
Flat & V Guide Ways with Gap |
Flat & V Guideways with Planer Type gap Bed |
|||
Swing Over Bed |
785mm |
985mm |
1075mm |
1250mm |
1450mm |
Height of Centre |
406mm |
508mm |
558 mm |
660mm |
760mm |
Width of Bed |
455mm |
610mm |
660mm |
762mm |
914mm |
Swing over cross Slide |
500mm |
650mm |
750mm |
900mm |
1100mm |
Swing in Gap |
1150mm |
1200mm |
1400mm |
1600mm |
1800mm |
Length of gap in front of face plate |
200mm |
250mm |
250mm |
250mm |
250mm |
No. of Spindle Speed |
8 |
8 |
8 |
8 |
8 |
Spindle Speed Range |
20 to 200 |
15 to 150 |
15 to 150 |
10 to 130 |
10 to 130 |
Taper in Spindle |
MT – 6 |
MT – 6 |
MT – 6 |
MT – 6 |
MT -6 |
Spindle Bore |
79mm |
79mm |
104mm |
104mm |
104mm |
Spindle Nose |
Threaded |
Threaded |
Threaded |
Threaded |
Threaded |
No. of British Threads |
20 |
20 |
20 |
20 |
20 |
Range of British Threads |
1 to 24 Tpi |
1 to 24 Tpi |
1 to 24 Tpi |
1 to 24 Tpi |
1 to 24 Tpi |
No. of Metric Threads |
13 |
13 |
13 |
13 |
13 |
Range of Metric Threads |
1 to 6mm |
1 to 6mm |
1 to 6mm |
1 to 6mm |
1 To 6 mm |
No. of Feeds |
19 |
19 |
19 |
19 |
19 |
Range of Longitudinal Feeds |
0.16 to 2mm |
0.16 to 2 mm |
0.16 to 2 mm |
0.16 to 2mm |
0.16 to 2mm |
Range of transverse Feeds |
0.04 to 0.5mm |
0.04 to 0.5mm |
0.04 to 0.5mm |
0.04 to 0.5mm |
0.04 to 0.5mm |
Lead Screw Diameter / Pitch |
44.4 mm / 2 Tpi |
44.4 mm / 2 Tpi |
50.8 mm / 2 Tpi |
50.8 mm/ 2 tpi |
50.8mm / 2 tpi |
Tail Stock Spindle diameter |
76mm |
100mm |
100mm |
100mm |
100mm |
Taper in tail Stock Qull |
MT – 5 |
MT – 5 |
MT – 5 |
MT – 5 |
MT – 5 |
Cross Slide Travel |
400mm |
500mm |
550mm |
650mm |
750mm |
Compound slide Travel |
225mm |
225mm |
200mm |
230mm |
230mm |
Tail Stock Sleeve Travel |
260mm |
260mm |
300mm |
300mm |
300mm |
Tool Post Square |
175 x 175 mm |
200 x 200mm |
200 x 200mm |
225 x 225mm |
225 x 225mm |
Tool Shank Size |
38 x 38mm |
38 x 38mm |
38 x 38mm |
38 x 38mm |
38 x 38mm |
Suitable Electrical |
5 / 7.5 HP |
7.5 Hp |
7.5 / 10 HP |
15 Hp |
15 Hp |
Model VH 406
Length of bed |
2100 mm (7′) |
2740mm (9″) |
3040mm (10′) |
3650 mm (12″) |
4260 mm (14′) |
4850mm (16′) |
5450mm (18′) |
6050mm (20′) |
|
|
|
|
Model Vh 508 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
Length of bed |
2100m (7′) |
2740 mm (9′) |
3040 mm (10′) |
3650 mm (12′) |
4260mm (14′) |
4850 mm (16′) |
5450 mm (18′) |
6050 mm (20′) |
– |
– |
– |
– |
Admit Between Centre |
700mm |
1300mm |
1600mm |
2200mm |
2800mm |
3400mm |
4000mm |
4600mm |
– |
– |
– |
– |
Model Vh 508 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
Length of Bed |
2100 mm (7′) |
2740 mm (9′) |
3040mm (10′) |
3650mm (12″) |
4260mm (14′) |
4850 mm (16′) |
5450mm (18′) |
6050mm (20′) |
– |
– |
– |
|
Admit Between Centre |
700mm |
1300mm |
1600mm |
2200mm |
2800mm |
3400mm |
4000mm |
4600mm |
– |
– |
– |
– |
Model Vh 508 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
Length of bed |
2100 mm (7′) |
2740mm (9′) |
3040mm (10′) |
3650 mm (12′) |
4260mm (14′) |
4850mm (16′) |
5450mm (18′) |
6050 (20′) |
– |
– |
– |
– |
Admit Between Centre |
550mm |
1150mm |
1450mm |
2050mm |
2650mm |
3250mm |
3850mm |
4550mm |
– |
– |
– |
– |
Model Vh 558 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
Length of Bed |
2100mm (7′) |
2740 mm (9′) |
3040 mm (10′) |
3650mm (12′) |
4260mm (14′) |
4850mm (16′) |
5450 mm (18′) |
6050mm (20′) |
6700 mm (22′) |
7300 mm (24′) |
7900 mm (26′) |
– |
Admit Between Centre |
500mm |
1100mm |
1400mm |
2000mm |
2600mm |
3200mm |
3800mm |
4400mm |
5000mm |
5600mm |
6200mm |
– |
Model VH 660 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
Length of Bed |
2740 mm (9′) |
3040mm (10′) |
3650mm (12′) |
4260mm (14′) |
4850mm (16′) |
5450mm (18′) |
6050mm (20′) |
6700mm (22′) |
7300mm (24′) |
7900mm (26′) |
8500mm (28′) |
9100 mm (30′) |
Admit Between Centre |
900mm |
1200mm |
1800mm |
2400mm |
3000mm |
3600mm |
4200mm |
4800mm |
5400mm |
6000mm |
6600mm |
7200mm |
Model Vh 760 |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
– |
